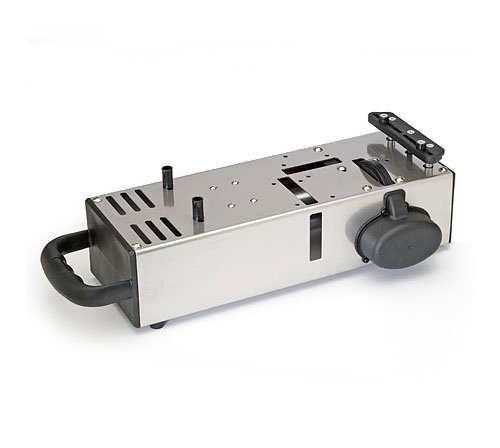

This is the Starter Box for the Associated Nitro TC3 and the RC10GT series of nitro powered vehicles. Fits 1/10th and 1/8th scale on-or off-road vehicles with inline or transverse mounted engines. Flywheel can be turned and reinstalled at a 90°angle. Adjustable posts and flywheel position allows starter box to be used with different brands of vehicles. High torque belt driven pulley reduction system. Fully assembled, brushed Stainless Steel case with plastic carrying handle.
Inlcudes
One Starter Box for the Associated Nitro TC3 and RC10GT with motor, and pre-installed standard connector, rubber flywheel, Y-connector for two 6 cell batteries, alligator clip for 12V power, and illustrated instruction manual.
Specifications
- Motor: 775 size 10V-14V DC electric
- Pulley Ratio: 4.307:1 (13 tooth pulley, 56 tooth spur pulley)
- Length: 13.38" (340mm) not including handle
- Width: 4.72" (120mm)
- Weight: 64 oz (1800g) without batteries
- Post Height: Front, .79" (20mm) Rear, .24" (6mm)
Requires
Two 7.2V flat six cell battery packs, or 4S Lipo.
